200 Kg Scale Load Cell Weight Weighing Sensor SENS32

Fr26,800

This straight bar load cell (also called a strain gauge) can translate up to 200kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to, and proportional of, the strain (e.g. pressure or force) applied to the bar.

2 in stock

SKU: 10402SEN Category:

Description

Description:

This straight bar load cell (also called a strain gauge) can translate up to 200kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to, and proportional of, the strain (e.g. pressure or force) applied to the bar. With this gauge you will be able to tell just how heavy an object is, if an object’s weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface.

Application:

  • Strain measurement
  • Digital and Analog Electronic Weighing scales
  • Weight Balancing Machines

Specifications:

  • Comprehensive error : 0.02% F.S
  • Sensitivity :1.0 0.1mv / v
  • Nonlinearity: 0.02% F.S
  • Hysteresis: 0.02% F.S
  • Importance of :0.02% F.S
  • Creep: 0.02% F.S/10min
  • 0:00 Output :2% F.S
  • Input Impedance :405 10
  • Output impedance :350 3
  • Insulation resistance :5000M (100VDC)
  • Excitation voltage :5VDC ~ 12VDC
  • Temperature compensation range :10 ~ +40
  • Operating temperature range: -20 ~ +60
  • Temperature effect on zero 0.03% F.S/10
  • Temmp.effect 0.02% F.S/10
  • Safe overload 120%
  • Ultimate Overload 150%
  • Protection class IP65

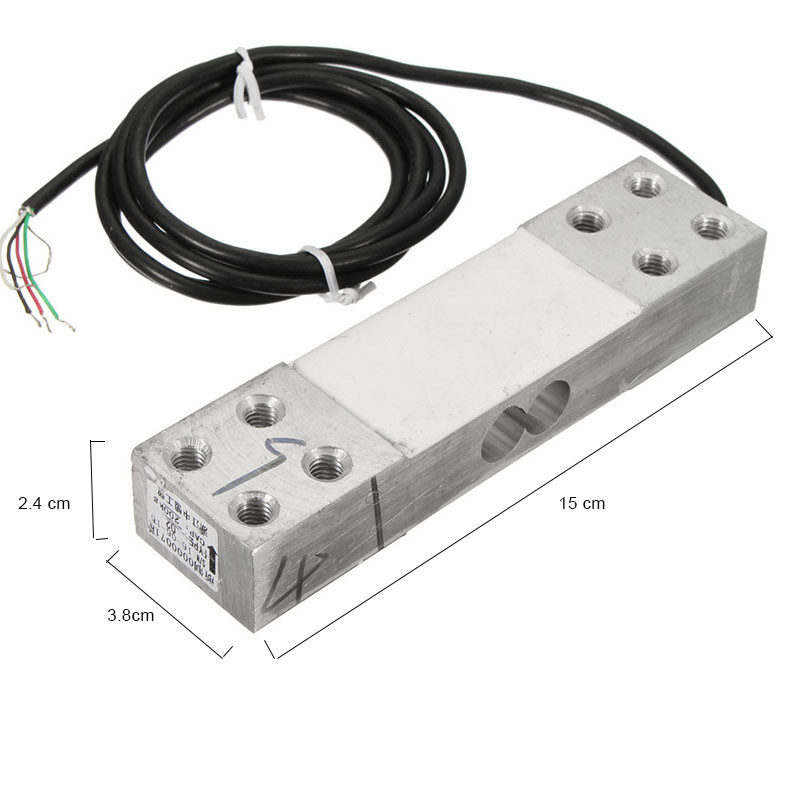

  • Dimensions: 150mm (L), 24mm (W), 38mm (H)
  • Cable Length:  ~ 1 meter
  • Weight : 320g

Pinouts:

  • Red : E+
  • Black: E-
  • White: S+
  • Green: S-
  • Shield: GND
