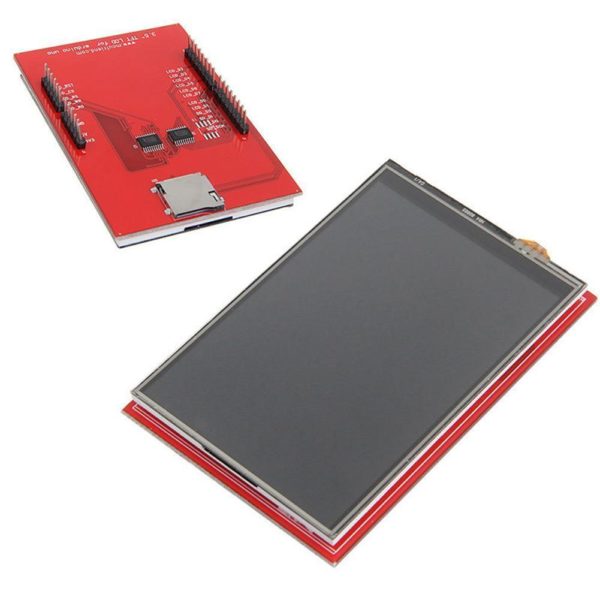

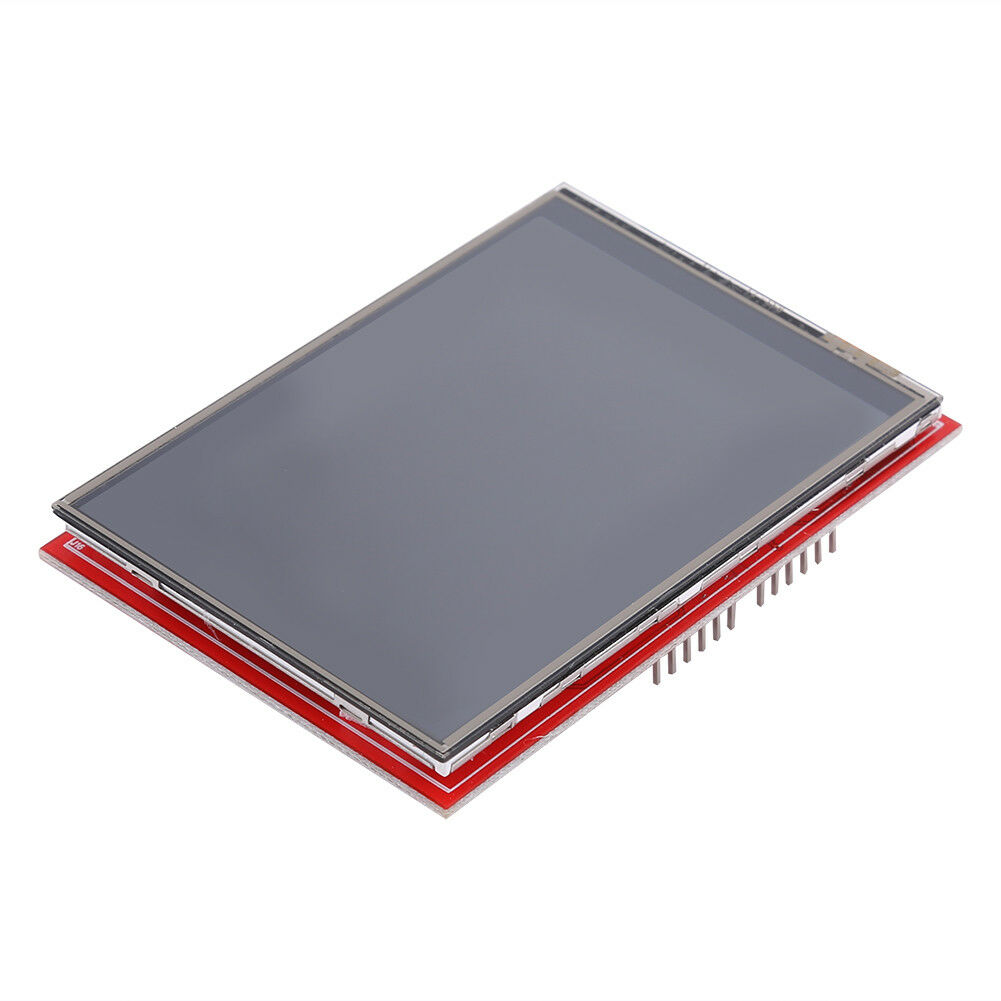

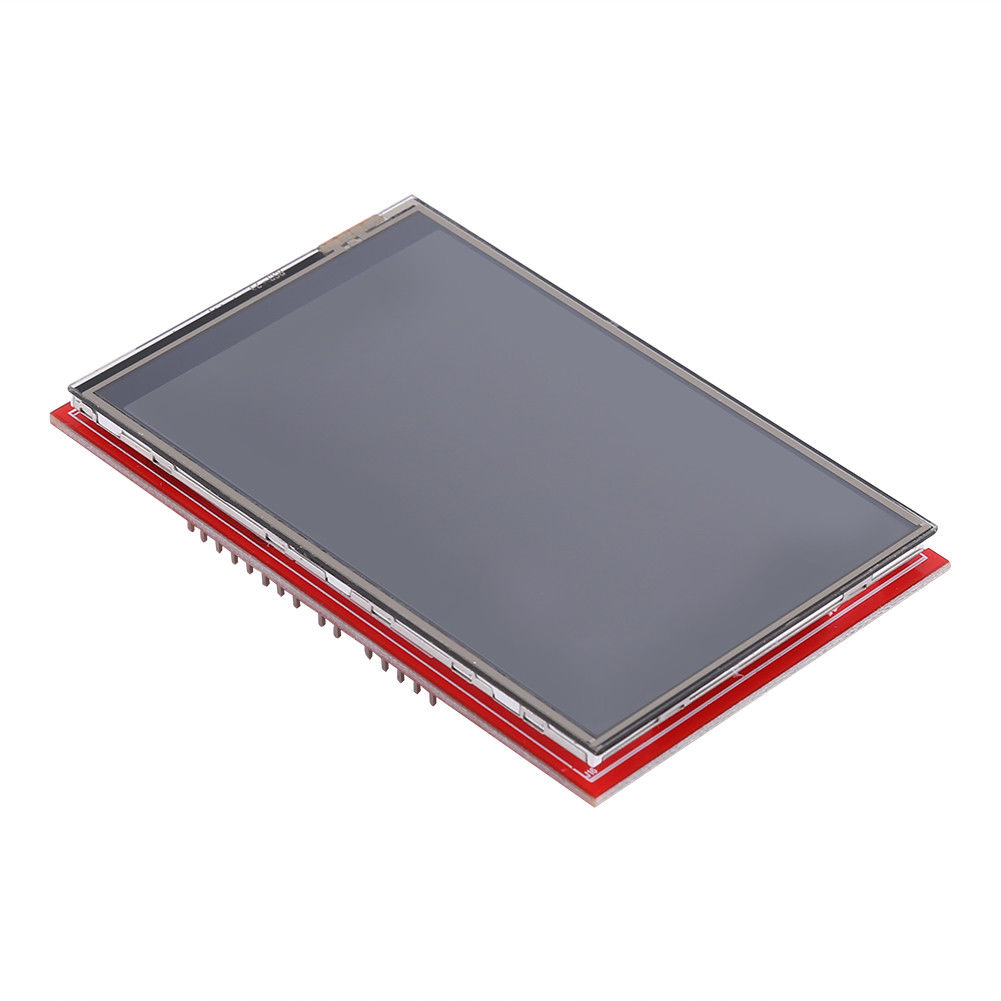

3.5 inch TFT LCD Display Touch Screen UNO R3 Board Plug and Play COM44

Fr19,500

This is TFT touchscreen LCD display which is  used to interface with arduino and can show image.

4 in stock

SKU: 9580CPN Category:

Description



Features:

  • 3.5inch TFT LCD Module, Resolution 480×320, Controller ili9481 ili9468, ili9488 hx8357, or r61581.
  • Designed with a TF(Micro SD) card socket on the back of board so that you can conveniently insert a card.
  • Support touch screen function.
  • The test code is provided below.
  • This kit requires certain professional knowledge and ability, make sure you know how to use it, please. We cannot provide any technical assistance.

Specifications:

Controller: ili9481 ili9468, ili9488 hx8357, or r61581

Resolution: 480×320

Voltage: 5V/3.3V



Getting started with the 3.5 inch TFT LCD Display Touch Screen UNO R3 Board Plug and Play

Testing the TFT LCD 3.5 inch 480×320 Touch Screen with an Arduino Uno.

Hardware required

Connecting the Hardware

connect the3.5″ TFT Touch screen into the Arduino Uno. Go slowly and ensure that all pins are inserted correctly and are straight.

Setting up the library

You can simply download and install library as shown below, by opening the sketch tab>include libary>manage libraries

after opening manage library wait a bit to search for libraries, after go to search tab type in “mcufriend” and install the library as shown below

Upload the sample sketch

open the sample sketch that is located in file>examples>MCUFRIEND_kbv>Button_Simple and upload it. as shown below

Testing the circuit

Once you upload this program you will see something like this on the screen

if you click on, the color it changes
