DHT22/AM2302 Digital Temperature And Humidity Sensor Module SENS46

Fr9,700

DHT22 digital temperature and humidity sensor is a calibrated digital signal output temperature and humidity combined sensor, which application-specific modules capture technology and digital temperature and humidity sensor technology to ensure that products with high reliability and excellent long-term stability.

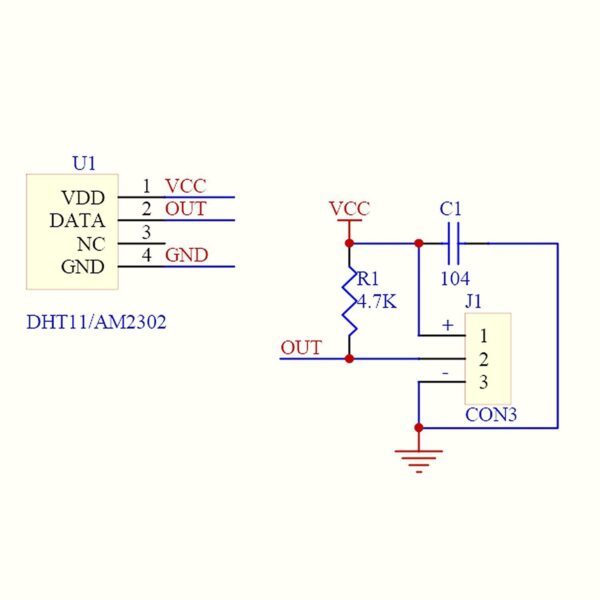

No pullup resistor needed. Just plug right in to Arduino.

6 in stock

SKU: 6267SEN Category:

Description

Main Chip: AM2302
Temperature range: -40 to 80 degree celsius
Temperature measurement accuracy: +/- 0.5℃ degree Celsius
Humidity measuring range: 0~100%RH
Humidity measurement accuracy: ±2%RH
Ultra-low power consumption
No additional components
Excellent long-term stability
Single-bus digital signal output, bidirectional serial data
Completely interchangeable
Long distance signal transmission
Size: 28 x 12 x 10 mm (L / W / H)
Screw hole diameter: 2.6mm

Getting started with the DHT22/AM2302 Digital Temperature And Humidity Sensor Module

In this tutorial you will learn how to use this sensor with Arduino uno. The room temperature & humidity will be printed to serial monitor

Step1: Hardware required

Step2: Connecting the Hardware

Follow the next schematic diagram to wire the  DHT22 temperature and humidity sensor to the Arduino.

Step3: Setting up the library

we’ll use the DHT library from Adafruit. To use this library you also need to install the Adafruit Unified Sensor library.

Step4: Upload the sample sketch

open the sample sketch that is located in file>examples>DHT sensor library>DHTtester. and upload it. as shown below

Step5: Testing the circuit

open your serial monitor by clicking on the icon in the right top corner(like search icon)
