Description

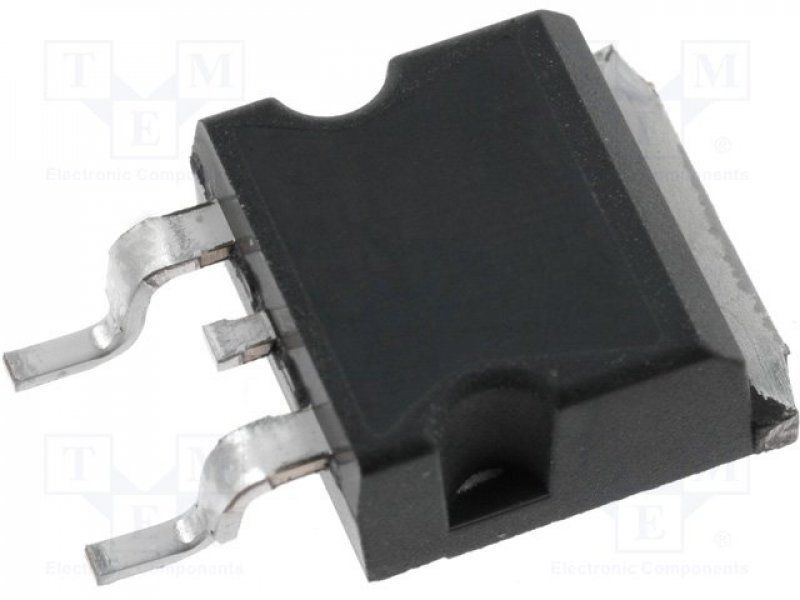

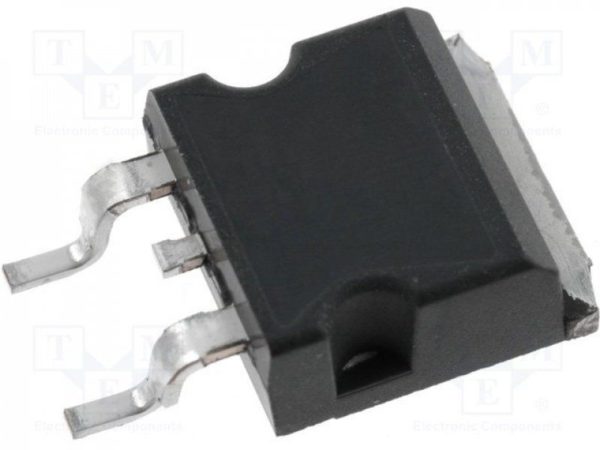

L7805ABD2T is a voltage regulator that can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. This type embeds internal current limiting, thermal shutdown and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current.

Features:

• Output current up to 1.5 A
• Output voltages of 5V
• Thermal overload protection
• Short circuit protection
• Output transition SOA protection
• 2 % output voltage tolerance
• Guaranteed in extended temperature range

Applications:

• Fixed-Output Regulator
• Positive Regulator in Negative Configuration
• Adjustable Output Regulator
• Current Regulator
• Adjustable DC voltage Regulator
• Regulated Dual Supply
• Output Polarity-Reversal-Protection Circuit
• Reverse bias projection Circuit
