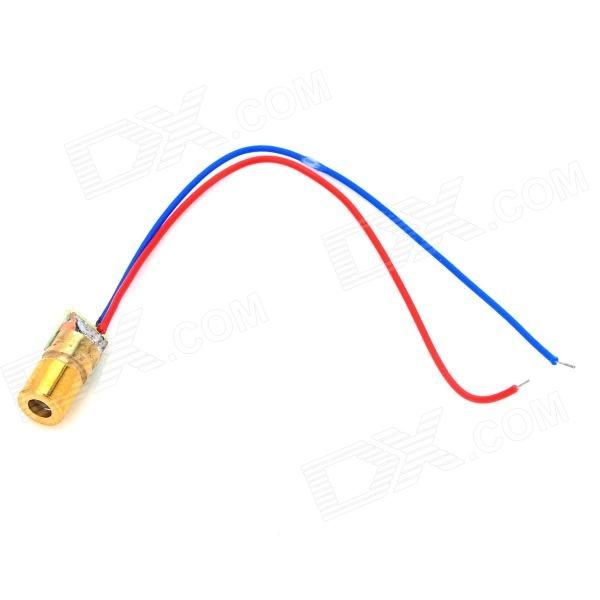

Laser dot diode COM333

Fr2,500

A laser diode is electrically a PIN diode. The active region of the laser diode is in the intrinsic (I) region, and the carriers (electrons and holes) are pumped into that region from the N and P regions respectively. While initial diode laser research was conducted on simple P-N diodes, all modern lasers use the double-heterostructure implementation, where the carriers and the photons are confined in order to maximize their chances for recombination and light generation.

21 in stock

SKU: 958CPN Category: Tag:

Description

A laser diode is electrically a PIN diode. The active region of the laser diode is in the intrinsic (I) region, and the carriers (electrons and holes) are pumped into that region from the N and P regions respectively. While initial diode laser research was conducted on simple P-N diodes, all modern lasers use the double-heterostructure implementation, where the carriers and the photons are confined in order to maximize their chances for recombination and light generation.

Features

  • Working life: more than 2000 hours
  • Spot mode: dot facula, continuous output
  • Laser wavelength: 650nm (red)
  • Copper head diameter: 6mm
  • Light power: <5mW
  • Supply voltage: 5V DC
  • Operating current: <40mA
  • Operating temperature: -36℃ ~ 65℃
  • Power lead length: 120mm
  • Shell material: brass
  • Single weight: 1g
