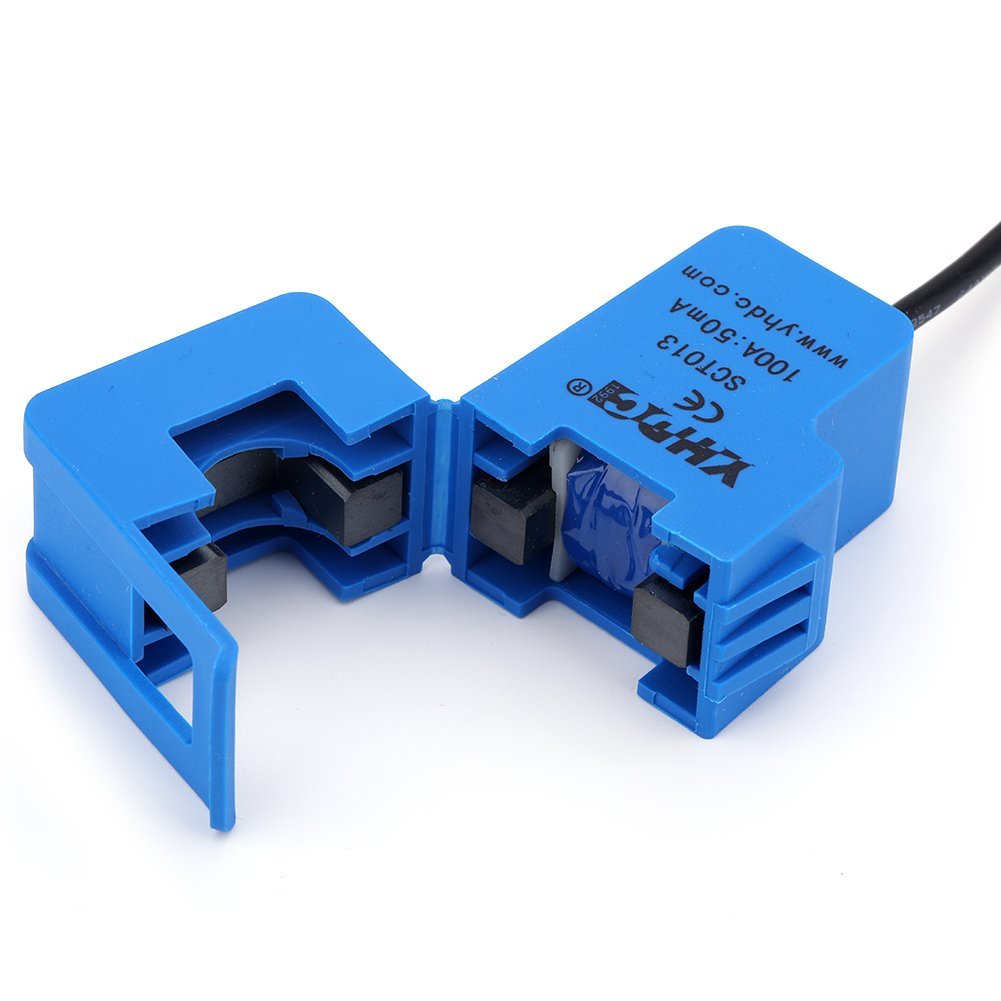

SCT013-Non-invasive Clamp AC Current Sensor 100A SEN35

Fr13,900

This ac current sensor used for measuring alternating current and it can measure up to 100 A , This split core transformer is particularly suitable for DIY use and it works well with arduino and raspberry pi.

4 in stock

SKU: 6629SEN Category:

Description

This ac current sensor used for measuring alternating current and it can measure up to 100 A , This split core transformer is particularly suitable for DIY use and it works well with arduino and raspberry pi.

Use this split core current sensor to build your own energy monitor, reducing your power usage, or use it build an over-current protection device for an AC load.

Suitable for lighting equipment, AC motors, air compressors, monitoring, current measurement and over-current protection.

  • Model: SCT-013-000
  • Type: Non-invasive current transformer
  •  Core Material: Ferrite
  •  Input Current: 0~100A AC
  •  Output Mode: 0~50mA
  • Leading Wire in Length: 1m
  •  Cable Jack: 3.5mm (like a headphone jack)
  • Turns Ratio: 1: 1800
  • Work Voltage: 660 v
  • Resistance Grade: Grade B
  •  Max Sampling Resistance: 10 Ω
  • Linearity: ±3%
  • Accurancy: ±1%
  • Work Frequency: 50-1 KHz
  • Work Temperature: -25˚C ~ 70˚C
  • Reference project: Open Energy Monitor
  • Dielectric Strength: 6000V AC/1min
  • Opening Size: 0.51 * 0.51inch / 13 x 13mm
  • Two Form of Output: current output or voltage output (a burden resistor needed to add);
  • Mechanical strength: opening and closing times, no less than 1000 times (20 ℃)
  • High Quality and Safe: Meet the requirement of flame-retardant characteristics (UL94-V0)
