SIM808 GSM/GPRS/GPS Bluetooth Compatible Development Board With GPS Antenna COM45

Fr40,500

SIM808 GSM/GPRS/GPS Bluetooth Compatible Development Board With GPS Antenna (Arduino and Raspberry Pi Compatible) is a development board; with SIM808 module which makes you able to use GSM communication and GPS features with your Arduino or Raspberry Pi. With this module, you can send and receive SMS; trace a location and you can even build your own cell phone. SIM808 module on-card functions as GSM communicator and GPS receiver.



6 in stock

SKU: 10970BRD Categories: ,

Description

SIM808 GSM/GPRS/GPS Bluetooth Compatible Development Board With GPS Antenna (Arduino and Raspberry Pi Compatible) is a development board; with SIM808 module which makes you able to use GSM communication and GPS features with your Arduino or Raspberry Pi. With this module, you can send and receive SMS; trace a location and you can even build your own cell phone.SIM808 module on-card functions as GSM communicator and GPS receiver.

Description:
1.Three power input interface: DC044 interface and V_IN and a lithium battery interface.
Note that: The range of DC044 and the V_IN pin voltage input is 5 – 26V, when use the 5V as the power, be sure that the power supply can provide 2A current. The range of voltage of Lithium battery input power is 3.5 – 4.2V.
2. Switch: It is used to open / close the input power supply for the module. When in use, please confirm the toggle switched to the OPEN state (near the board inside).

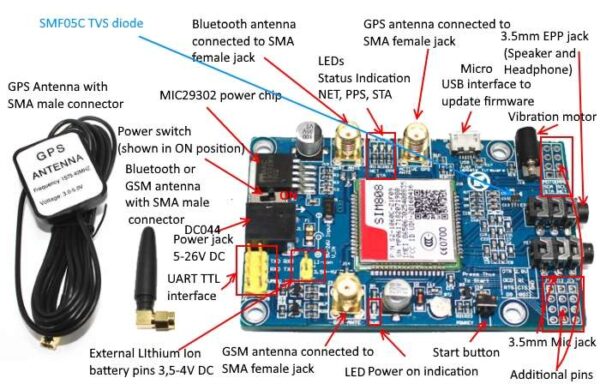

3. SMA antenna interface: there is a GSM antenna interface, a GPS antenna interface onboard and a BT antenna interface.
4. Start button: When the board is power on, the LED (PWR) will light up. After a long press (about 2 second) on this button, the other three LEDs will be light. And one of them starts to flash; this suggests that SIM808 is beginning to work now. When the power supply, GSM and GPS antenna and SIM card are connected to the module correctly, the LED will be flash slowly (3Second de 1second light), that indicates that the module is registered to the network, and you can make a call or do something else.
5. TTL serial interface: a TTL level interface. Notice that: The pin of VMCU is used to control the high level of TTL UART, so as to realize to match between 1.25V/3.3V /5V systems. For example, if you want to use the 51 MCU to control this board, the pin of VMCU should be connected the DC5V. And if use the STM32 MCU, the pin of VMCU should be connected the DC3.3V. The pins of RXD is the RXD of SIM808 and the pins of TXD is the TXD of SIM808. The pin of V_IN can connect the Power, the function of this pin has the same function of DC044.
Operation Description:
  1. 1 Connect the USB-TTL to the UART interfaceUSB-TTL  SIM808
    TXD       RXD
    RXD       TXD
    GND       GND
  2. Insert the valid SIM card to the SIMCARD holder.
  3. Connect the GPS antenna and GSM antenna to the board.
  4. Connect the power adapter to the DC044 Interface.
  5. Change the switch.
  6. Press the POWKEY button for 2 seconds, the SIM808 module will work and the other 3 LEDs will light.
