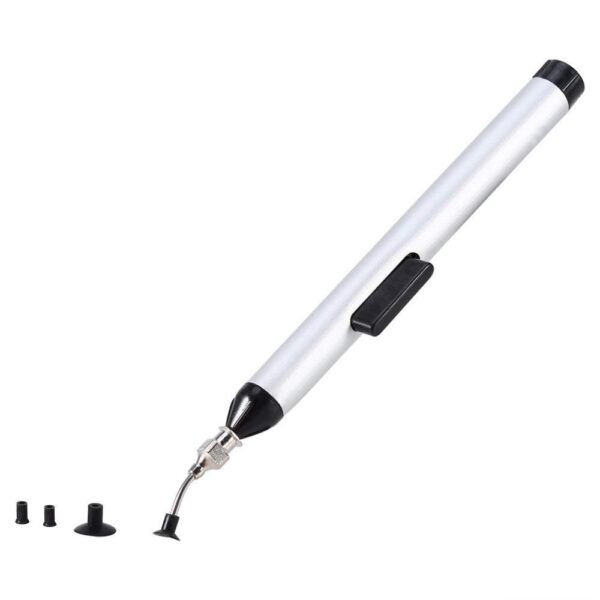

SMD Easy Pickup and Placement Tool COM43

Fr4,850

This is an alternative to tweezers for the pickup and placement of delicate SMD components, soft ESD-sate conductive silicone suction cups won’t scratch or damage sensitive parts which Included 3 size of suction headers.

3 in stock

SKU: 7058TOL Category:

Description

SMD Easy Pickup and Placement Tool

Install a proper IC suction header on suction pencil
Place the suction header level on IC
Press down the button on the suction pencil to let out the air within the vacuum unit, then release the button to produce vacuum suction force to pick up IC
ut the IC on a proper place, press down the button, the vacuum unit discharges air to let the IC fall off the suction header
3 suction headers are provided with this suction pencil, large size, medium size and small size respectively for:Large size for 40g ,Medium size for 18g ,Small size for 3g

Package Included:
1 x suction pen
3 x suction headers
