Description

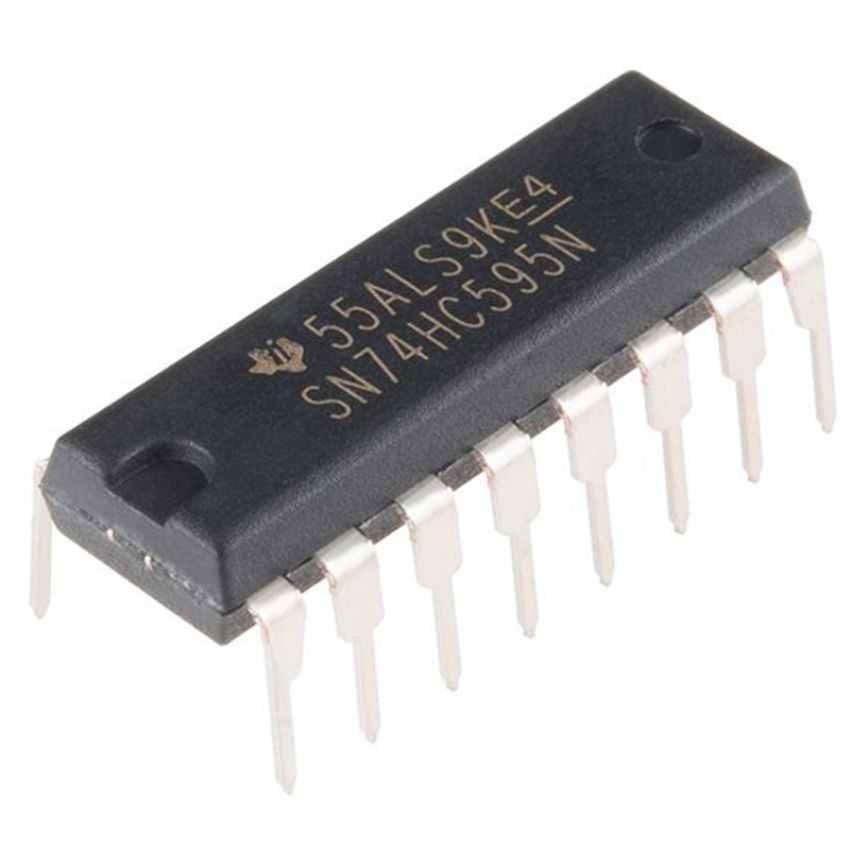

The SN74HC595N is a simple 8-bit shift register IC. Simply put, this shift register is a device that allows additional inputs or outputs to be added to a microcontroller by converting data between parallel and serial formats. Your chosen microprocessor is able to communicate with the The SN74HC595N using serial information then gathers or outputs information in a parallel (multi-pin) format. Essentially it takes 8 bits from the serial input and then outputs them to 8 pins.

Features:

8-Bit Serial-In, Parallel-Out Shift
Wide Operating Voltage Range of 2 V to 6 V
High-Current 3-State Outputs Can Drive Up to 15 LSTTL Loads
Low Power Consumption: 80-μA
±6-mA Output Drive at 5 V

Applicatios:

• Network Switches
• Power Infrastructure
• LED Displays
• Servers

Documents:

Datasheet
