Description

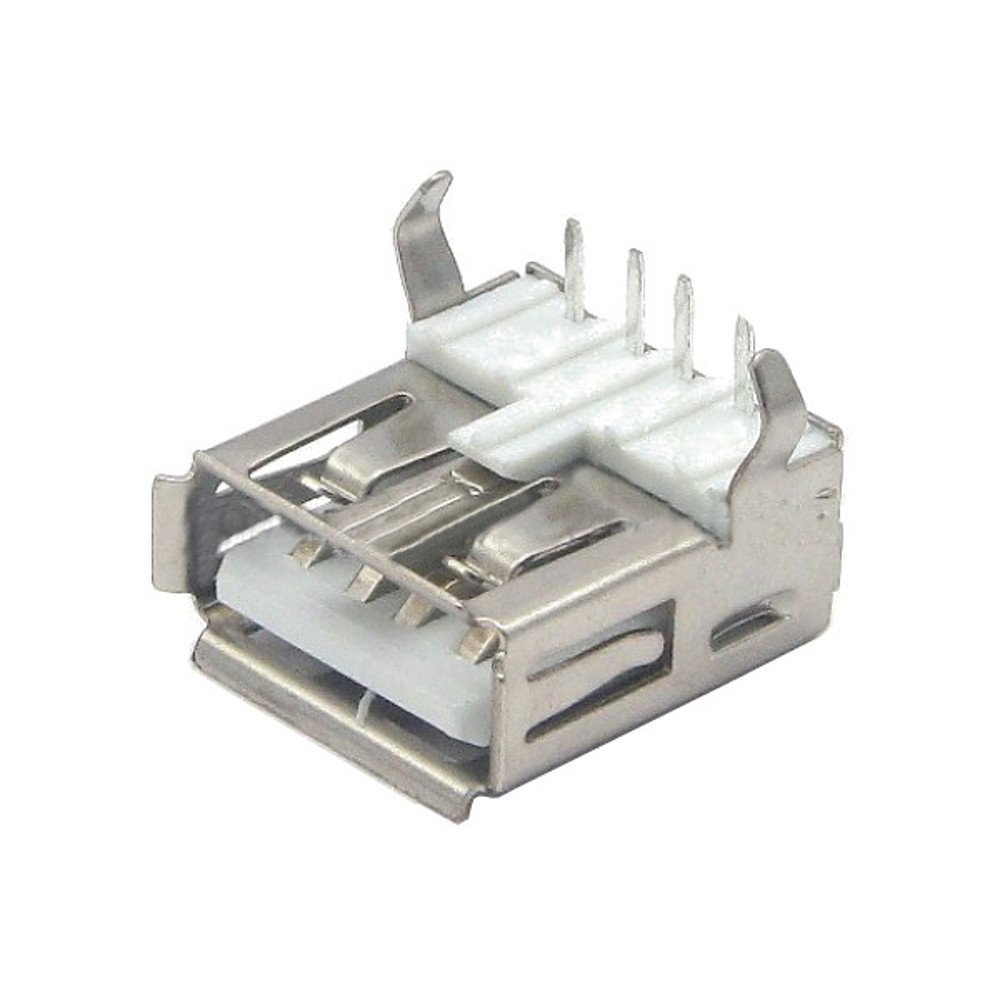

The female USB socket can be used to replace the old socket on your devices or in other USB enabled devices.

They’re also great for prototyping if your project requires USB connectivity since the pinout fits perfectly most of the perfboards, but you will need a small modification for the support pins.

You can either drill 2 holes for the support posts, or fold them out of the way, or cut them off completely.

Specifications

• Operating Temperature Range: -25° C to +85° C
• Rated Load: 12 VDC, 0.1 A
• Contact Resistance: ≤0.03 Ω
• Insulation Resistance: ≥100 MΩ
• Withstanding Voltage: 500 VAC (50 Hz) / min
• Insertion Force: 3 N to 20 N
• Life: 5000 cycles
